Hi Everyone!

After building the Pocher Testarossa in 1/8 scale ([WIP] Ailvard's Ferrari Testarossa, Pocher, 1/8) , decided to take a challenge with Monogram Corvette 85. This would complement my real Corvette C4 88, with the same rims and some modifications related to 88 year (the monogram’s model is 85, which is not a big difference). Plus I will try to make it way more detailed, than kit offers by default :slight_smile:

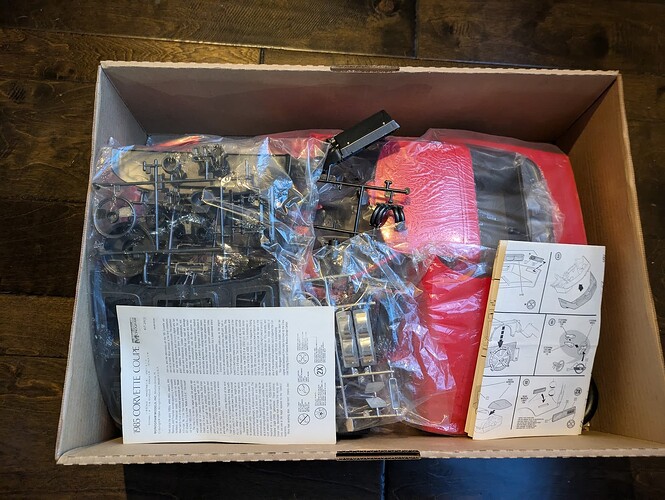

I bought this kit in ebay, relatively chip ~$70 in a mint condition - even the plastic wrap was there.

PXL_20241018_235116166.MP
PXL_20241018_235116166.MP1920×1442 274 KB

PXL_20241018_235131687
PXL_20241018_2351316871920×1442 300 KB

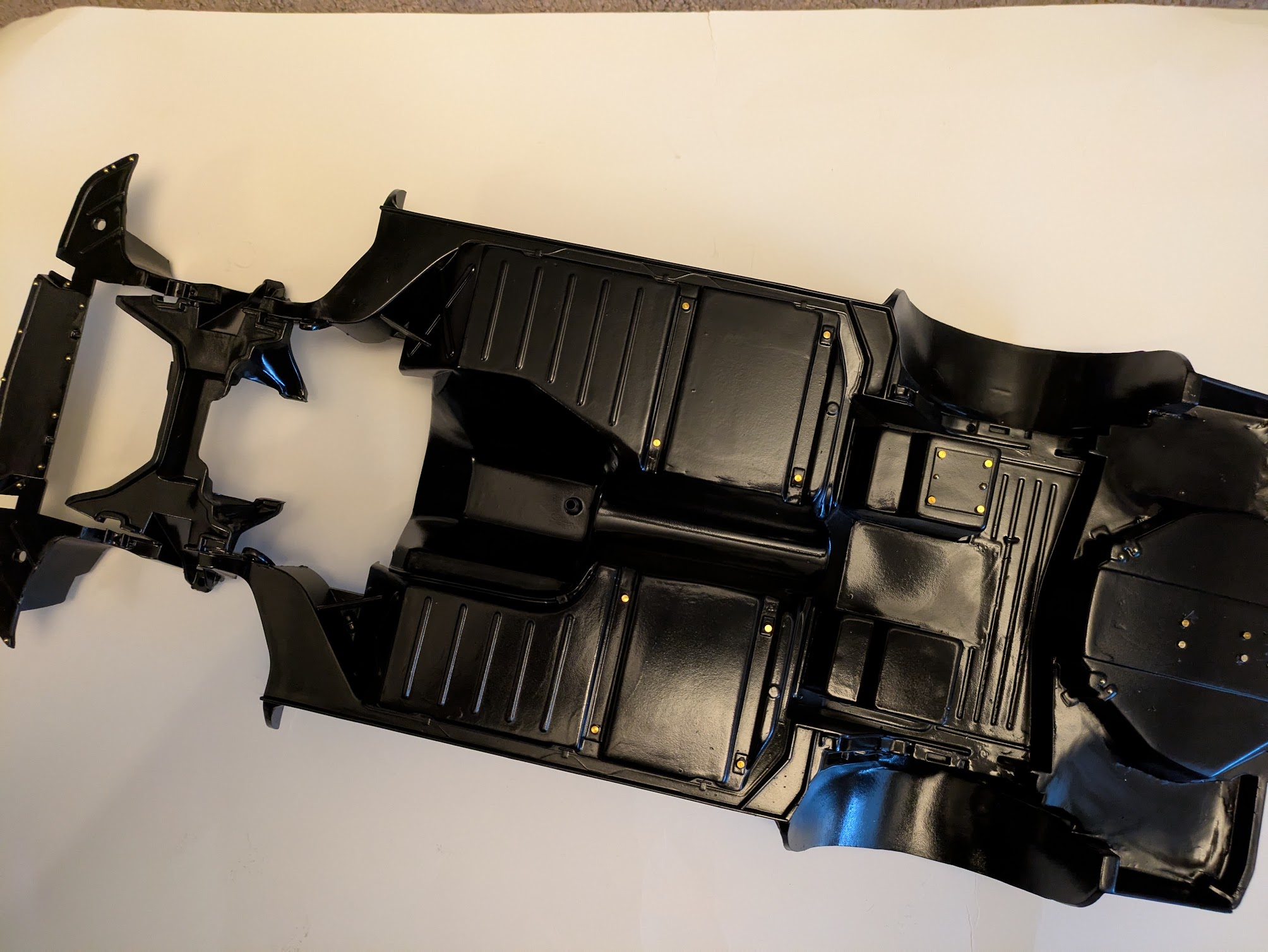

The undercard in the model in molded as a single piece - I decided to cut it and make separately the Rear end, mufflers, exhaust and wiring\piping

PXL_20241103_182654521.MP
PXL_20241103_182654521.MP2008×1508 400 KB

PXL_20241105_204259703
PXL_20241105_2042597032008×1508 446 KB

PXL_20241219_162730221 (1)
PXL_20241219_162730221 (1)1920×1442 490 KB

PXL_20241224_005656828
PXL_20241224_0056568281132×1508 450 KB

PXL_20241224_181625656
PXL_20241224_1816256562008×1508 387 KB

PXL_20241112_191700179
PXL_20241112_1917001792008×1508 315 KB

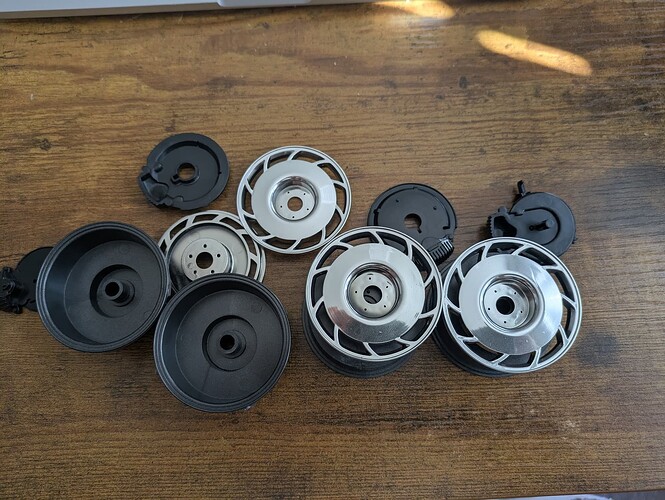

The wheels are also made pretty strange - they have 2 inner sides with molded brakes to the shield. I didn’t like that and decided to make it more real

PXL_20241230_195151101
PXL_20241230_1951511011920×1442 322 KB

PXL_20250107_193800329
PXL_20250107_1938003292008×1508 223 KB

PXL_20250107_193845663
PXL_20250107_1938456632008×1508 220 KB

PXL_20250115_200954946
PXL_20250115_2009549462008×1508 225 KB

It required to use 3d printer to make brake rotors. Also, since the brake calipers where only halfs - I molded mine one by duplicating these halfs in epoxy

Made custom shock absorbers from aluminum pipes (I have KYB on my real car, so decided to stick with that :slight_smile: ) and added details to steering rack

PXL_20250128_180940376 (1)
PXL_20250128_180940376 (1)2008×1508 213 KB

PXL_20250128_220508506
PXL_20250128_2205085062008×1508 243 KB

Engine was reworked too

PXL_20241114_154830950
PXL_20241114_1548309502008×1508 385 KB

PXL_20250212_182925943.MP
PXL_20250212_182925943.MP2008×1508 403 KB

PXL_20250212_182907395
PXL_20250212_1829073951920×1442 239 KB

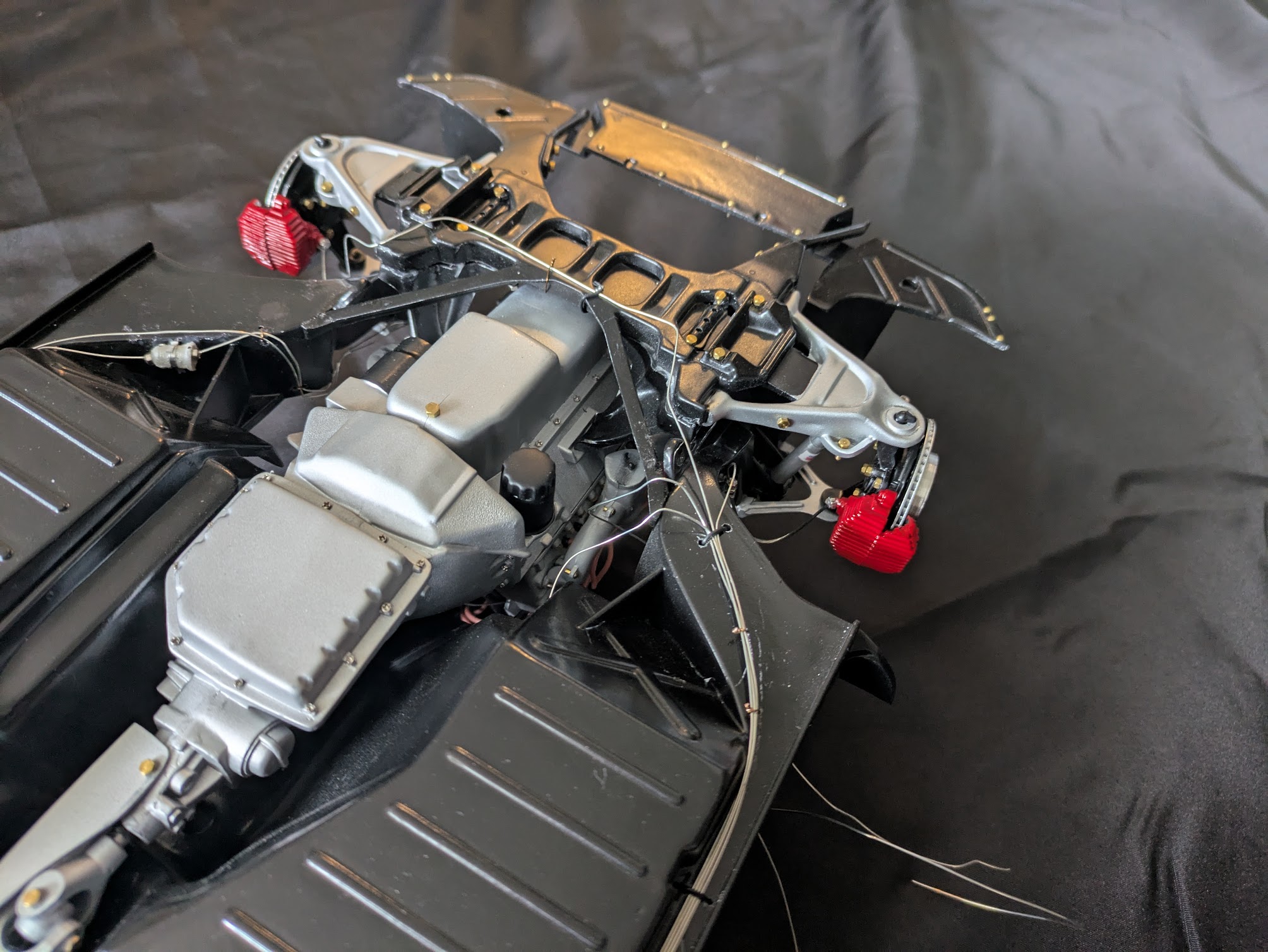

And here is undercarriage result (without mufflers and exhaust)

PXL_20250205_185946377
PXL_20250205_1859463771920×1442 313 KB

PXL_20250205_185955367
PXL_20250205_1859553672008×1508 428 KB

PXL_20250205_185959967
PXL_20250205_1859599671920×1442 292 KB

PXL_20250212_182907395
PXL_20250212_1829073951920×1442 239 KB

Then I added exhaust (bended stainless steel pipes), mufflers (aluminum can foil) + some hardware
(btw - all bolts are real - either brass bolts or steel nuts and screws)

PXL_20250212_182956905
PXL_20250212_1829569052008×1508 373 KB

PXL_20250212_183004963
PXL_20250212_1830049632008×1508 326 KB

PXL_20250212_183016155
PXL_20250212_1830161552008×1508 418 KB

Next in the list is interior and doors (thinking about cutting them out from the body).

6 Likes
2

Where did you get the “real” bolts and nuts? They really sell those areas.

1 Like
3

ebay :slight_smile: Sometimes they sell it in a big boxes (100+ bolts) - it is cheaper. But usually they sell by 10 in a bag. Just search for “hex 00-90 or 0-80 brass bolts”.
Regarding the screws - found them in Amazon - similar to these: Amazon.com: E-outstanding 600pcs M1 M1.2 M1.4 M2.5 Mini Electronics Screws Nuts Assortment Tool Kit 12 Kinds of Repair Hardware Tools Box with Screwdriver for Electronic Products : Industrial & Scientific

1 Like
4

Now I just need a teeny tiny socket wrench. LOL

3 Likes
5

What an in-depth project @Ailvard. In knowing about this kit I was a little skiddish at first when I opened the thread but after seeing all of the modifications and corrections that you are putting into it, it’s one heckuva top notch build in progress. Excellent work!

1 Like
6

In this scale just about anything is possible nowadays Mike. Heck even in 1/24, 1/25 and down to 1/43rd scale anything is possible.

7

Holy smokes!! Awesome details, and the hardware is the flipping cherry :cherries: on top :joy::fire::fire::fire::fire:

8

I have a set of hex punches from RP Toolz and punch out hex bolt heads as I need them. That’s another alternative.

2 Likes
9

Wow. Really nice detail.
I haven’t touched a scale model since I was about 12. 38 years later I am just starting to refind the passion and also just joining this forum.

After just finishing my real ground up 79 Trans Am build LS3 conversion I just found the 1/8” Revell Trans Am S/E model and am currently building that.

I too am trying to go that extra level of detail with stainless fuel lines and Wiring harness, ignition etc. Your build is fantastic and has given me some great ideas!! Amazing what you did with those bolts!!!

Great job!!! I love the 1/8 kits!!!

3 Likes
10

Welcome to the forums Bird… look forward to seeing some of your builds.

1 Like
11

Ailvard, that engine compartment looks amazing! Your attention to all of the little details is what sets this build apart from others. This is going to look epic when its completed. Good luck with the rest of the build.

1 Like
12

Looking forward to seeing that T/A Dominic.

Welcome aboard buddy.

Joe

1 Like
13

Thank you. Depends on how it comes out lol!!

When I was 12 I remember the parts being bigger and much more clear. Now at 50 they seem to be smaller and much more blurry! :wink:

I’ll post some pics when I get further down the road.

1 Like
14

Guess what BirdistheWord, at 63 the parts look even smaller and blurrier.
