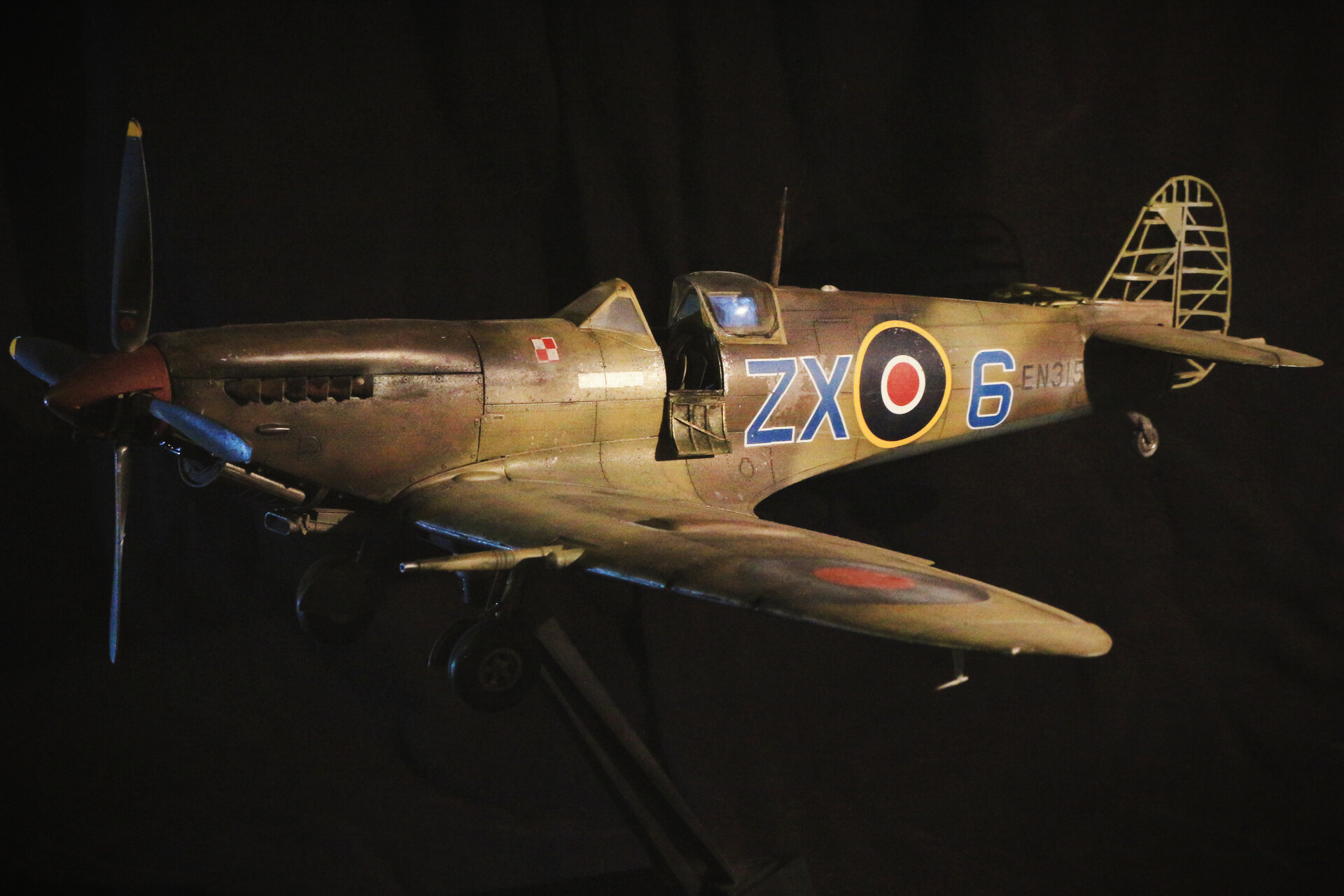

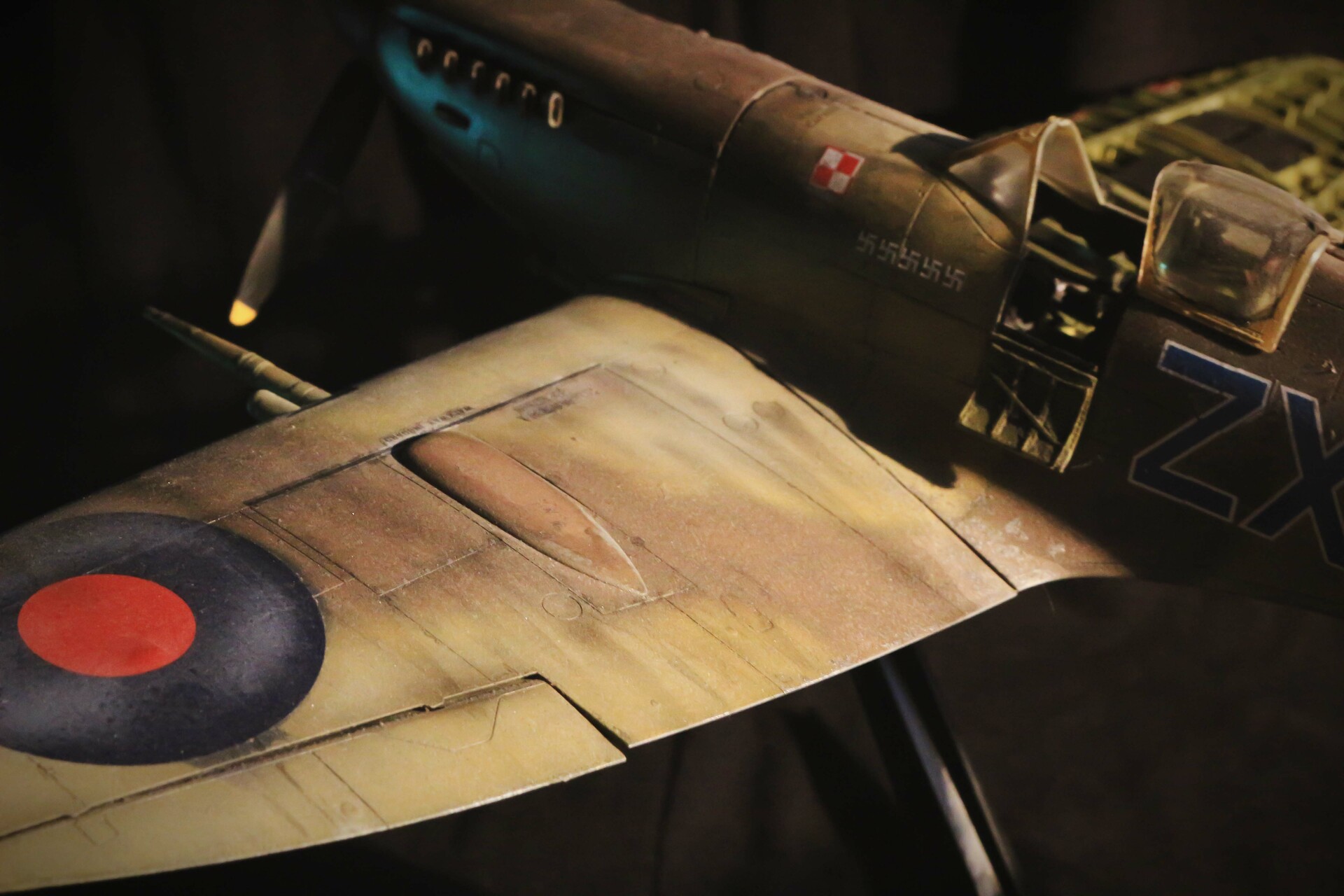

For my 1st post on this friendly forum [A], I’d like to present you the latest on my collection. Sorry no process for now. Only the result ! Some imperfections for now due to lake of precision during the conception. [:#]
I used the spitfire 1/32 from Tamiya. I used Adobe Lightroom to make blueprints of the wings and tail.

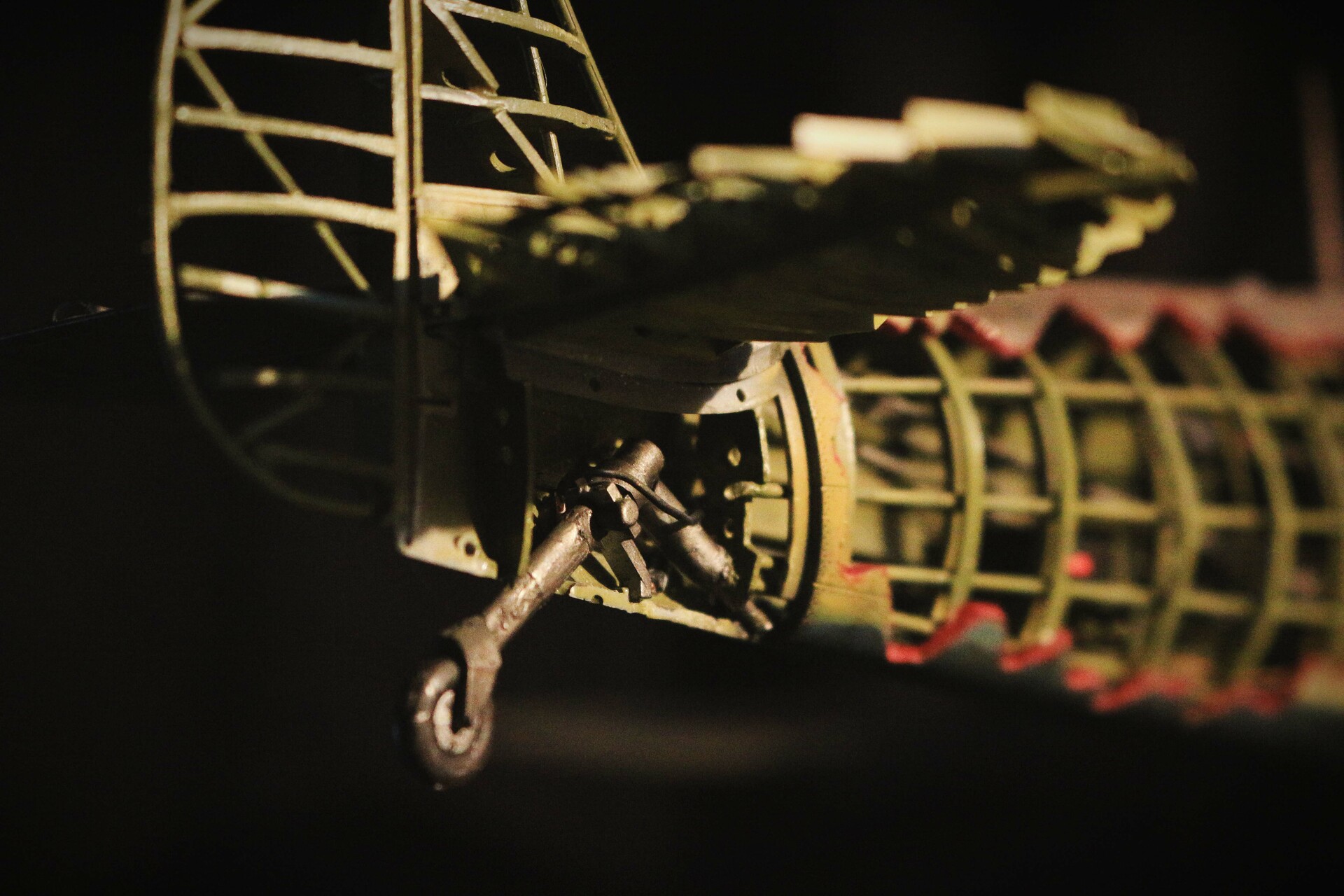

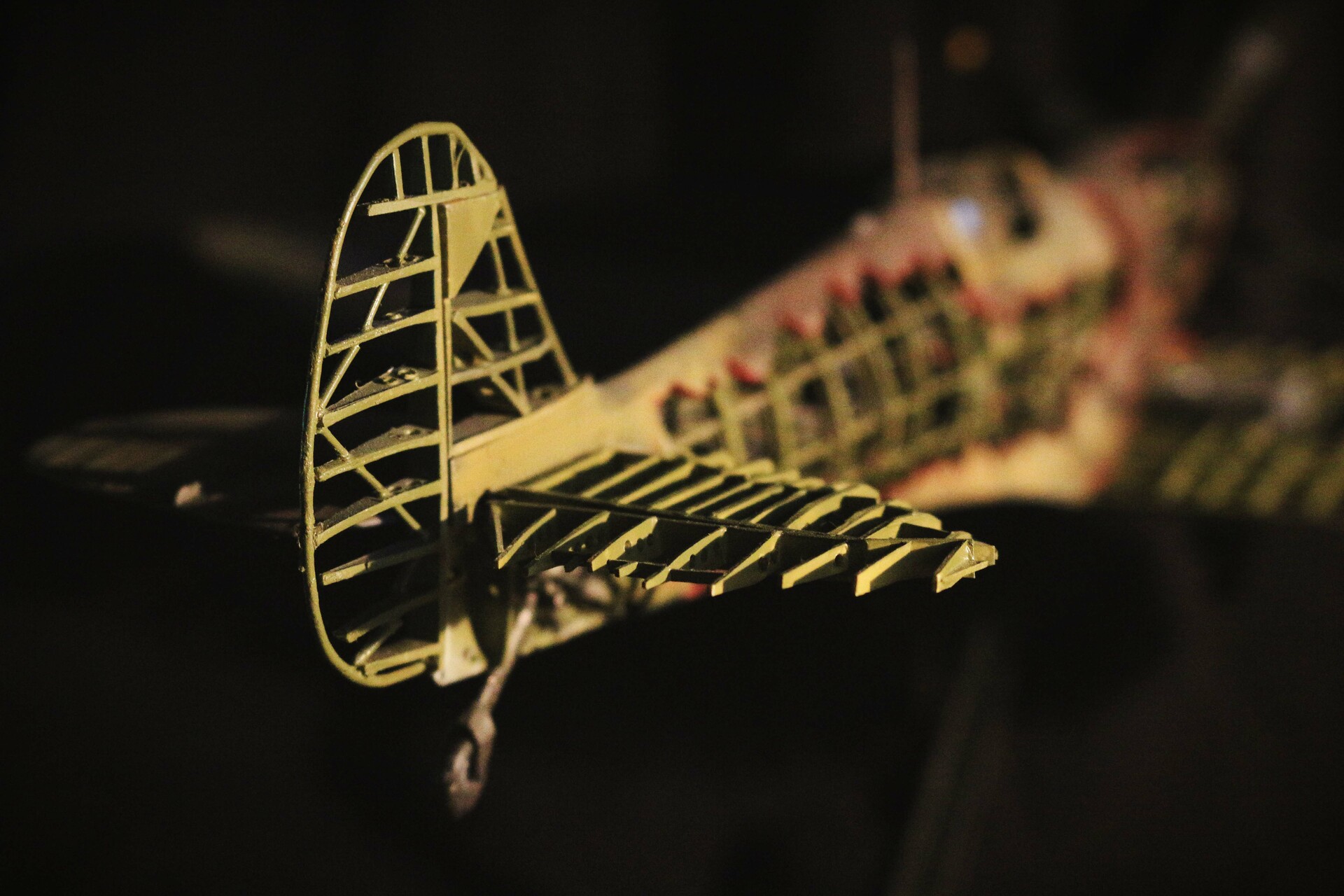

Tail was quite hard to make because of its small shapes/ The tail wheel has been extended in order to make the inside mechanism

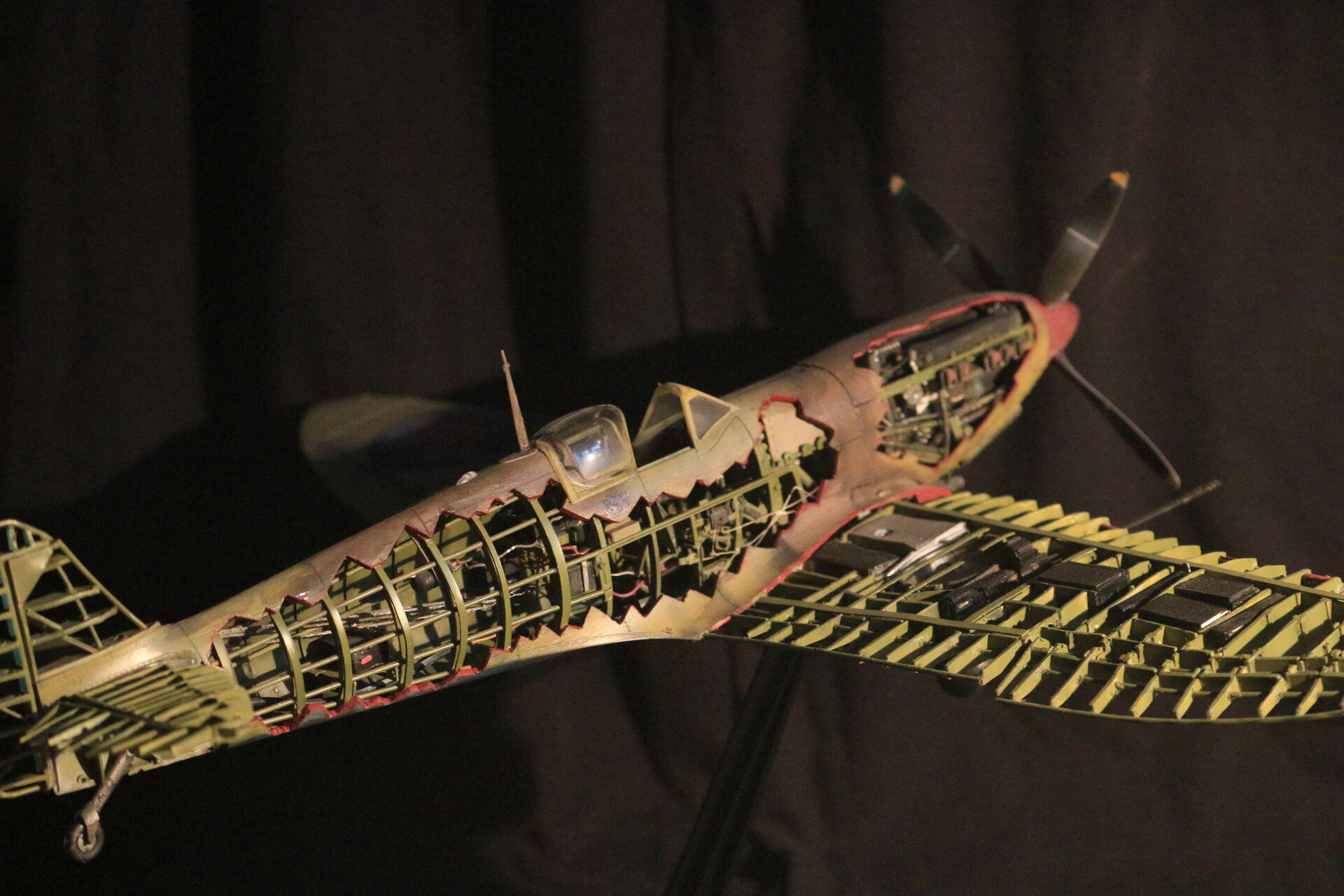

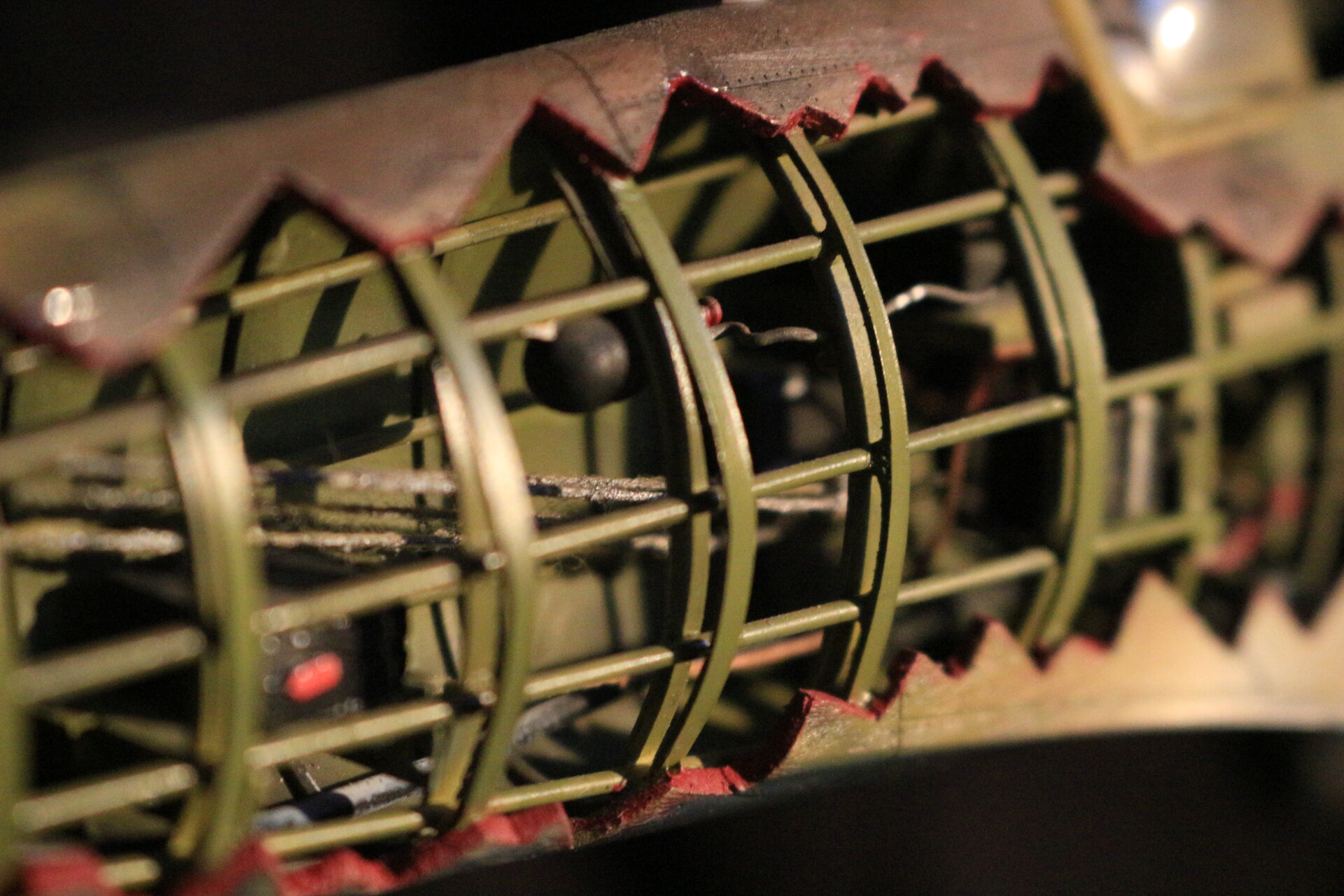

I added control cables inside the fuselage according to the cutaway I found on the internet

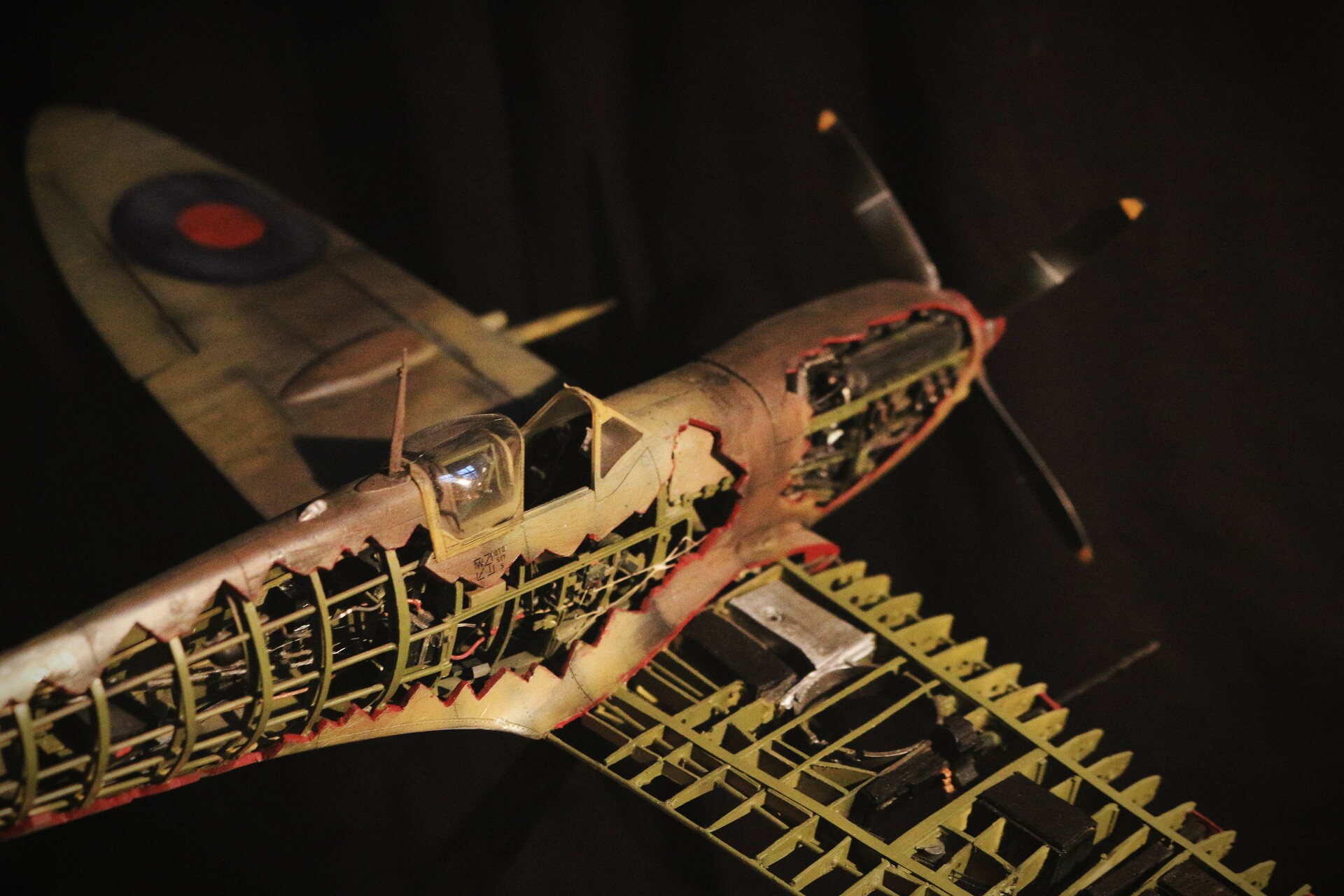

Canon was made using Styrene sheet as well as the complete structure. The main difficulty was the lack of reference building the structure of the wing

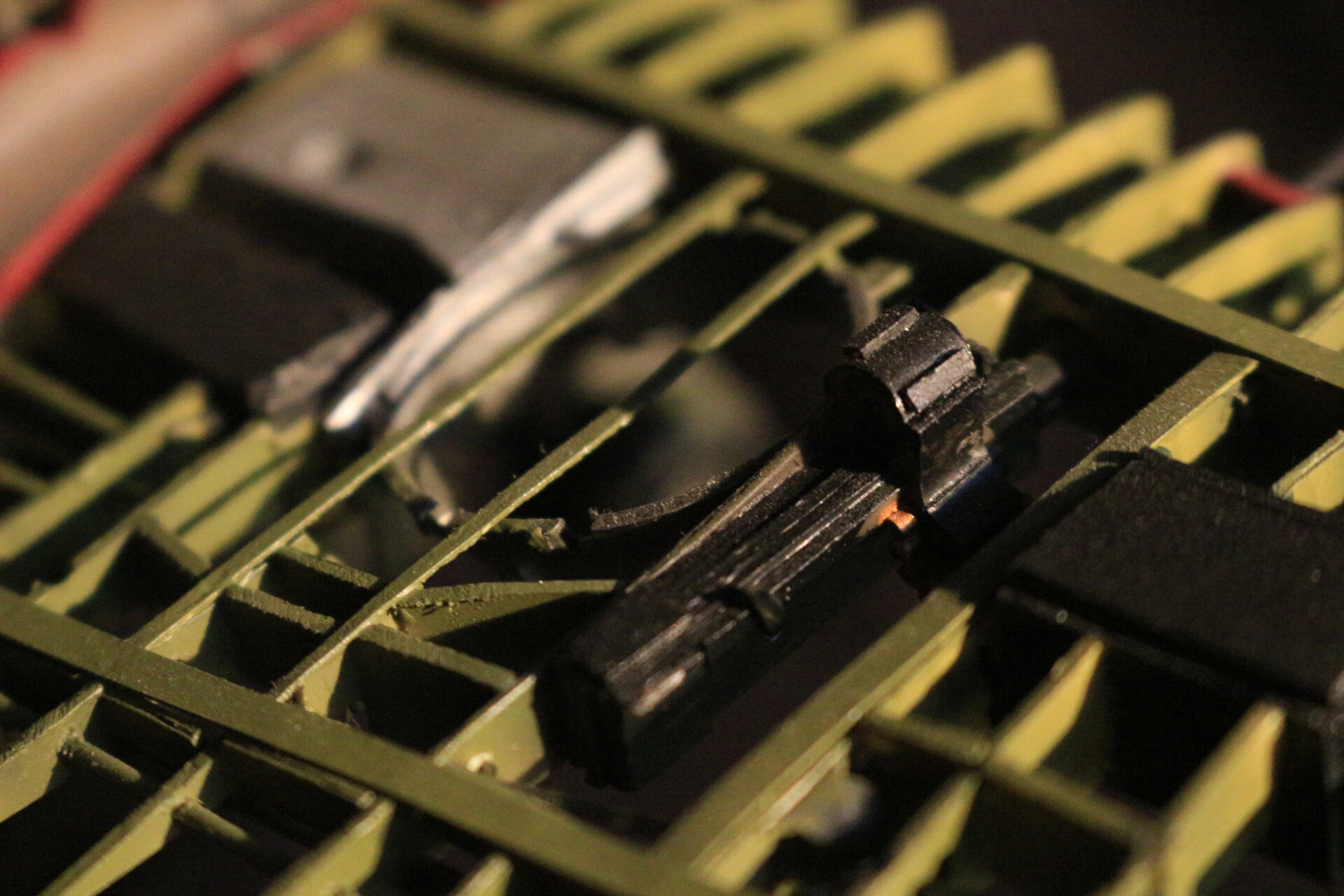

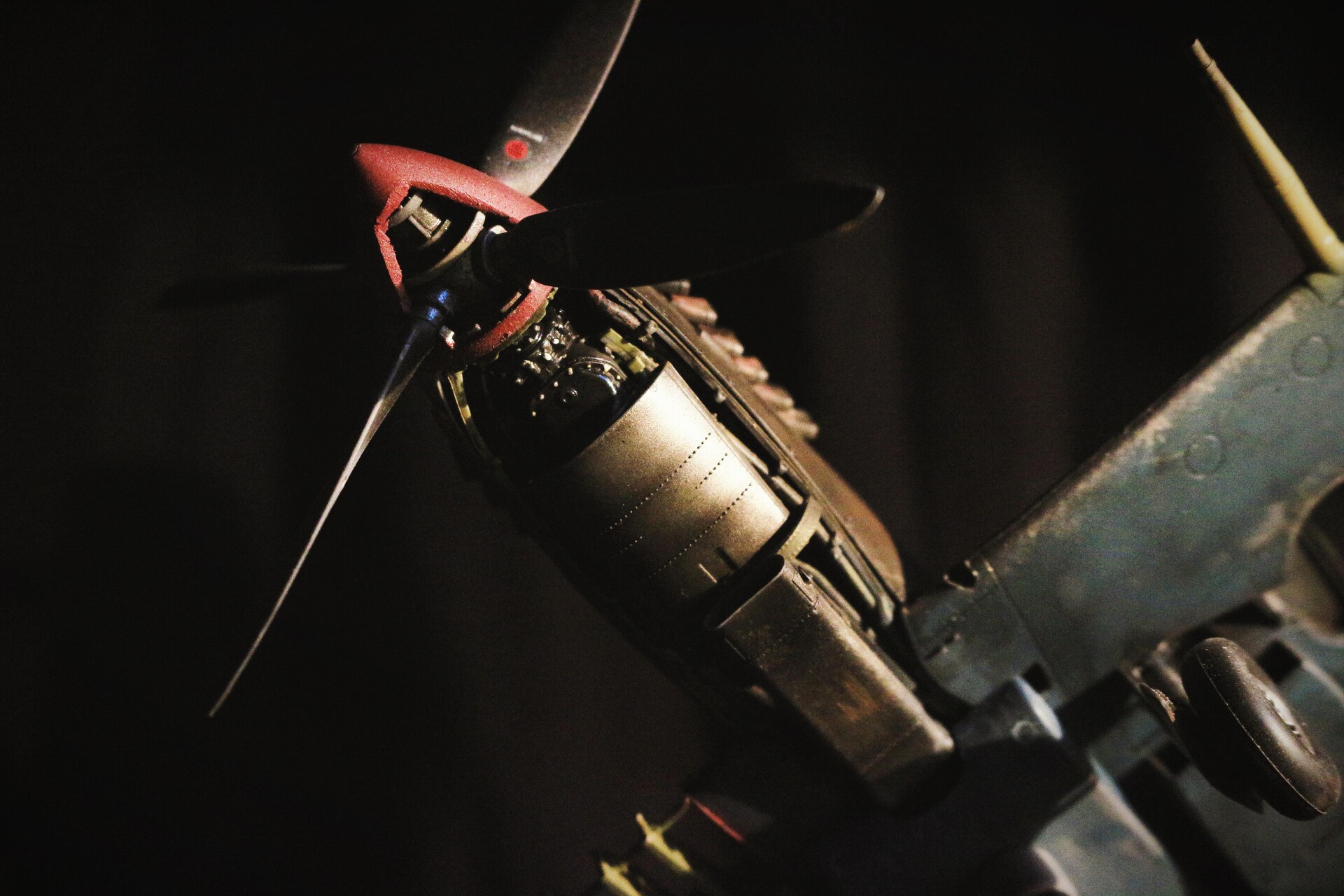

Here is the engine…[8-|]
Hope you enjoy guys ! I’m open for every constructive critics !
For the conception, I drawn the shape with the structure, a really detailed drawing with each airfoil profil. I listed things which constituate the wings: machine gun, undercarriage, tanks, radiator, etc… defining their location, and how to make something that will looks realistic.
For the building, this is simply a use a styrene sheet from evergreen, according to the blueprints with some adjustments. I mesured the exact size for wing ribs, longeron. In fact, everything is in the conception. I don’t really know how to be more precise.
I’m on a new project of cutaway. This time, It gonna be a P-61 from Hobby Boss 1/32 again more details. I gonna start the WIP soon. I’ll try to explain a much as possible steps of conception and building.
