Starting a scratch project of a paddle steamer, the SS Arrow, an excursion steamer to the islands of Lake Erie. It will be 1:132, because that is the largest size I could print out the drawings on my 11 x 17 printer (the length of the hull will be about 15 inches).

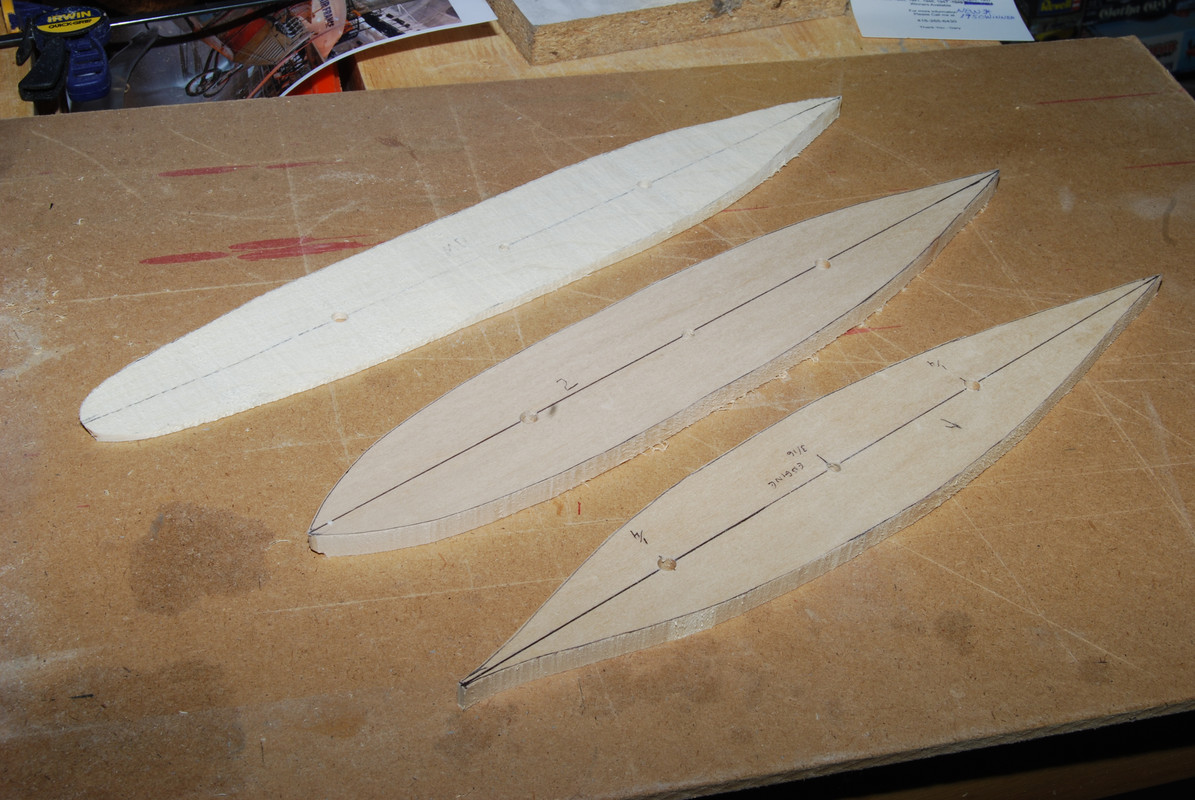

I usually do my scratch ships as solid hull, using the bread and butter method. Here are the lifts- ony three needed for this squat hull.
Here is a photo of the actual ship.
I’ll be watching this!
EJ
Wow Don, as a proponant of scratch building, I am looking forward to your scratch build of the walking beam steamer ARROW. One will never see a kit of this model, that is why I like your build progress.
Happy modeling [:D]
That’s a great subject, Don. How are you planning to create the deck sheer? A bit of the belt sander?
Hi,
I’ll be watching too.
Pat
Nice subject Don, I will be sitting in watching this as well.
v/r,
Ben
going to enjoy this.
I haven’t seen this done so I’m hoping you post a lot pics Don.
All of the above, Don. Looking forward to your WIP pics.
Actually, Dumas has a kit of a walking beam steamer. I think it is call the Mt. Washington or something like that. But it is a 400 buck plus kit- too rich for my blood. And big! I am running out of display room. Found the plans or the arrow- very similar. The plans were for a forty plus inch model. Photgraphed plans with my best digital camera and it worked. I can print them out on smaller scale.
The deck sheer is already cut on the top lift. I stacked up the lifts before cutting the planforms, and stuck them together with dowels. That made the top lift stable on the bandsaw, and I was able to cut the sheer. Then took it apart, drew the plan lines on that upper lift.
Don;
Leave it to you ! Nice project .Now I will have do the Canadiana , regardless of scale ! T.B.
Ahh, I see. Is this basswood?
I subscribed to this build Don.

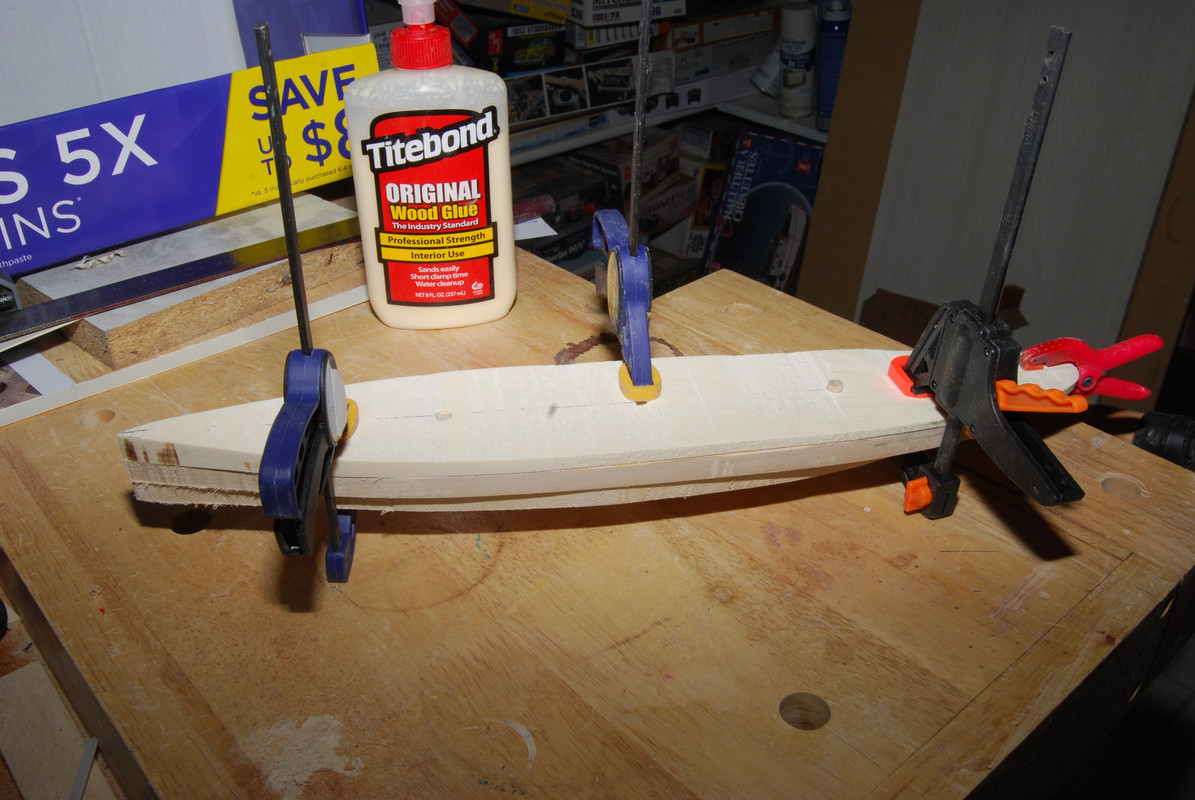

I have the lifts glued together, and ready to carve. I printed the section lines onto card stock to make section templates. The plans give sixteen section drawings, so takes awhile to cut the sixteen templates, but that should make a pretty accurate hull.
Yes, that is basswood- God’s gift to carvers and scratch builders.
I just looked it up at Bluejacket- it is the Portland, not the Mt. Washington. Over 500 bucks.
BlueJacket’s side -wheel steamer PORTLAND, is an impressive model if one is willing to part with $600., which includes shipping and handling. This walking beam steamer was built in 1889 by the Bath Iron Works of Bath, Maine for service between Boston and Portland. Vanished during the terrible New England gale on Noverber 27, 1898 with the loss of 118 passengers and crew. The wreck lies in 460 feet of water off Cape Ann, east of Gloucester, Massachusetts.
